Model: JBS-30R
Max Output: 30m³/h
Power: 66KW
Power Supply: Diesel Engine
Model: JBS-40R
Max Output: 40m³/h
Power: 82KW
Power Supply: Diesel Engine
Model: JBS-30E
Max Output: 30m³/h
Power: 37KW
Power Supply: Electric Engine
Model: JBS-40E
Max Output: 40m³/h
Power: 45KW
Power Supply: Electric Engine
Description
SMAT has two main product categories: Mixer Pumps and Trailer Pumps. SMAT has two types of pumps: diesel and electric. We can develop a program according to the customer's requirements on the flow rate, pressure and mixing capacity of the product. The actual vertical height of pumped concrete can reach 80-100 meters, and the horizontal distance is 150-300 meters.

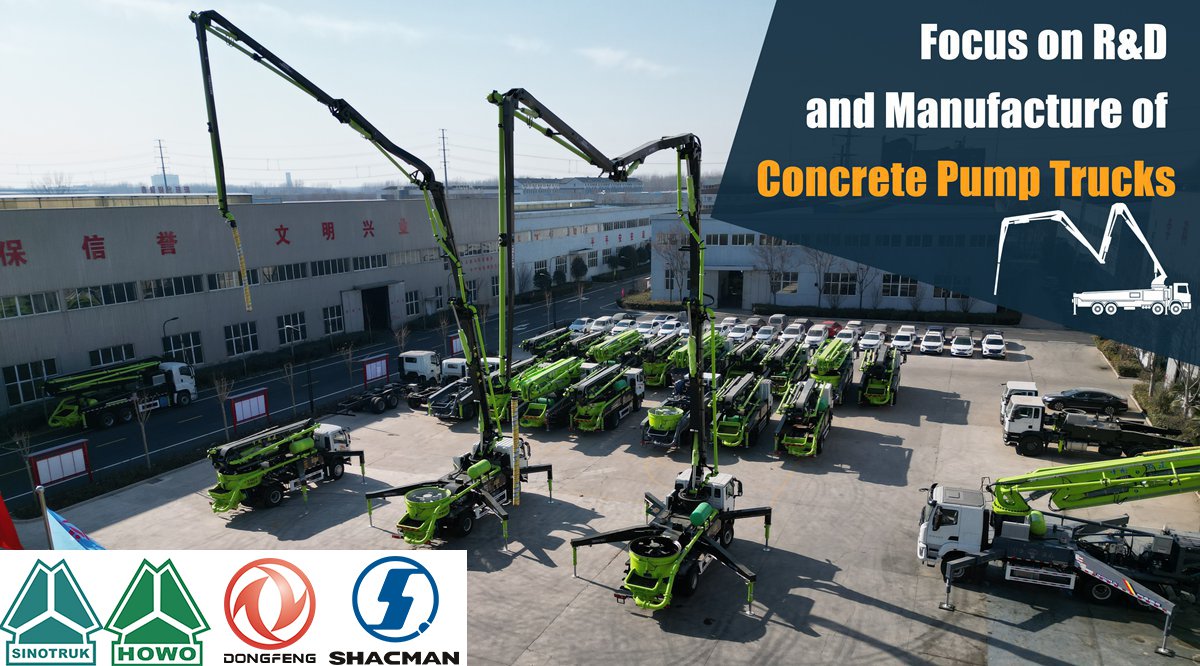

SMAT Factory Show
Free with Your Order
How to Choose the Right Concrete Pump from SMAT
Hot Sale
Best Sale Concrete Pump
Diesel Engine Concrete Mixer with Pump JBS-40R
If you want to purchase a concrete mixer with pump for your own project like building construction or road construction, and more prefer a diesel engine. JBS-40R is a good choice for you.
- Model: JBS-40R
- Max Output: 40m³/h
- Power: 82KW
- Power Supply: Diesel Engine
Electric Mixer Pump JBS-40E
If you prefer an electric engine concrete mixer with a pump in the Philippines for your own project. JBS-40E is better for you.
- Model: JBS-40E
- Max Output: 40m³/h
- Power: 45KW
- Power Supply: Electric Engine

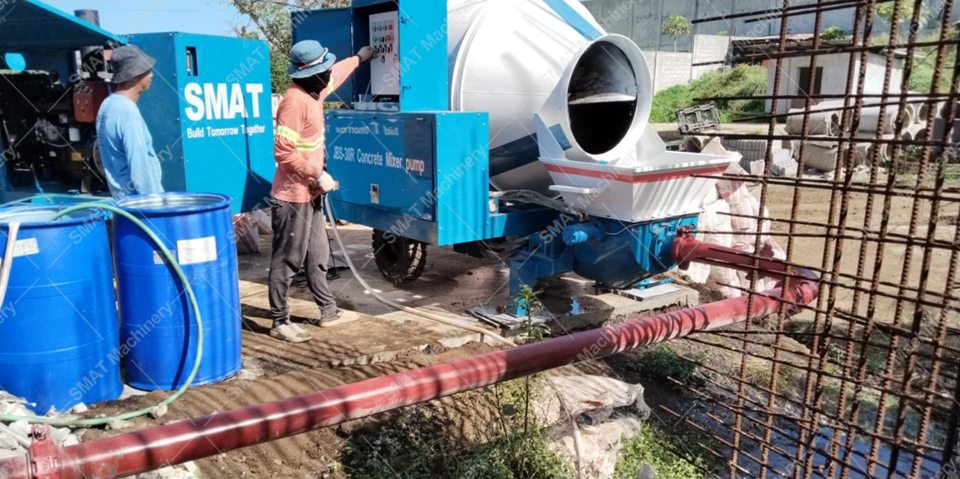

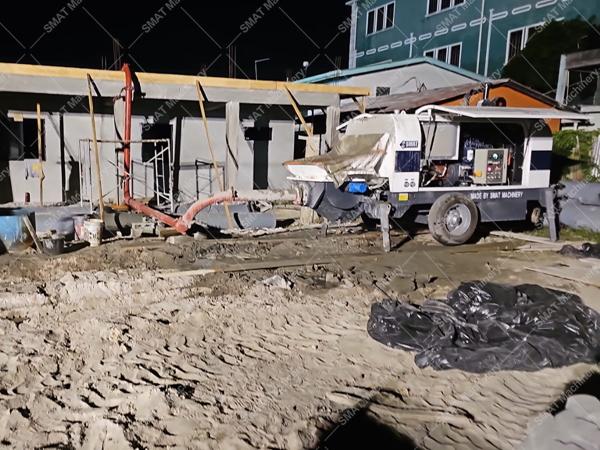

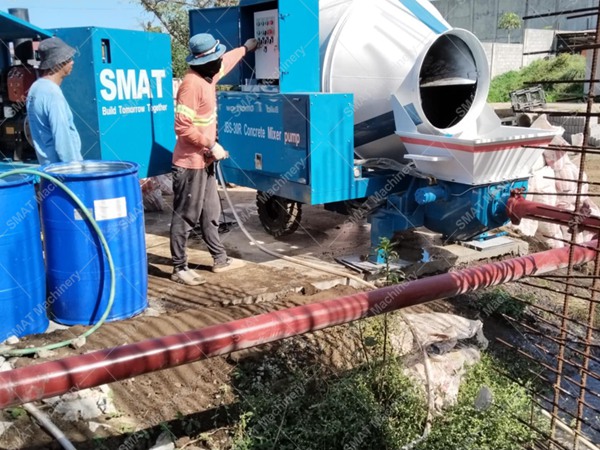

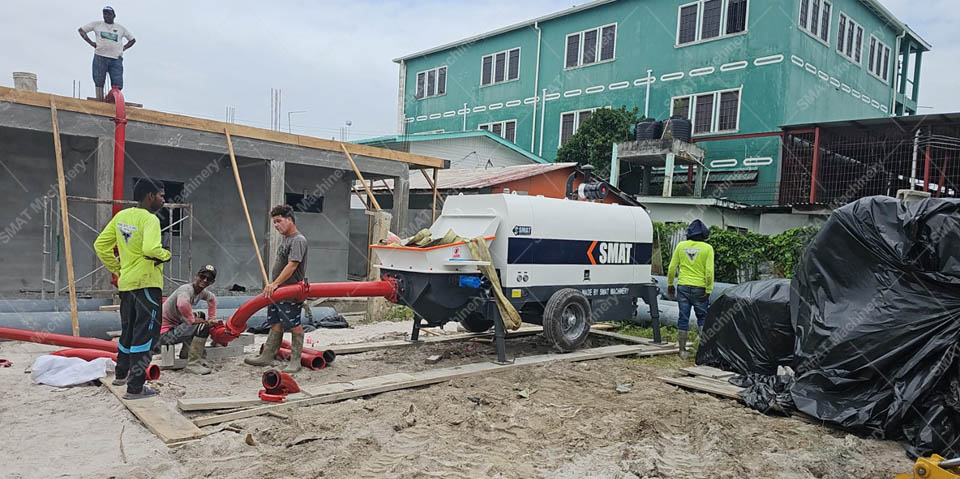

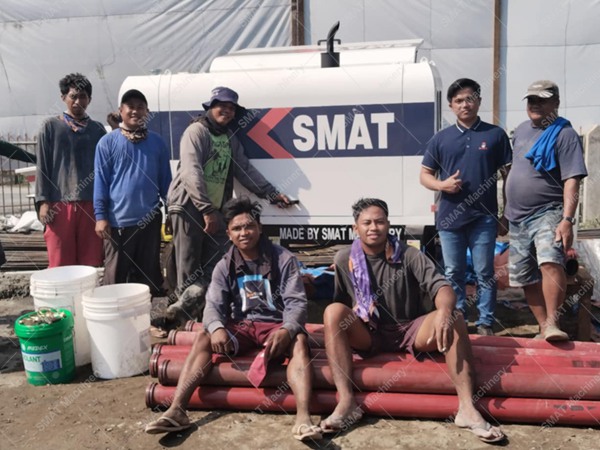

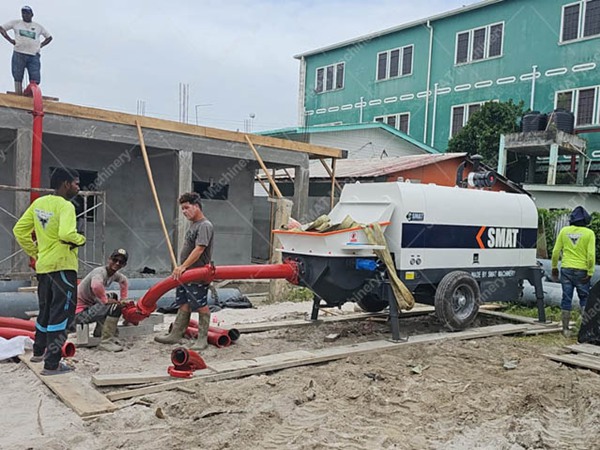

SMAT Concrete Pump Machine on Site
SMAT Concrete Pump Configuration
The parts used in SMAT concrete pumps are all top brands. Only by strictly demanding every part and link, SMAT can deliver the most satisfactory machine to customers.
Main Oil Pump Brand: Kawasaki
We adopt double pumps and double-circuit open hydraulic systems. The main pump oil circuit and S-valve swing oil circuit are independent of each other, so it is easy to determine the source of failure and eliminate it in time
01
Intermediate Relay Brand: Schneider
Fast signaling and simultaneous control of multiple circuits used to directly control motors or other electrical actuators. Work efficiently.
02
Hydraulic Hose Brand: Italy Manuli
It has an automatically enhanced lubrication system to ensure effective lubrication during the operation.
03
Seal Brand: Parker
Good elasticity and high abrasion resistance. Free with order.
04
PLC Brand: Japan Omron
Adopt modular design and easy installation. It can be customized according to engineering needs to improve the adaptability and flexibility of the equipment.In case machine parts fail, regional debugging can be used to solve the problem and avoid time costs.
05
Valves Brand: Huade or Taiwan
We adopt double pumps and double-circuit open hydraulic systems. The main pump oil circuit and S-valve swing oil circuit are independent of each other, so it is easy to determine the source of failure and eliminate it in time.
06
Engine Brand: Weichai Deutz
SMAT uses the world-famous brand engine, more stable quality, and longer service life
07
What SMAT Would Do After Confirm Oder
Our products are shipped to various sites of road construction, bridge construction, and real estate construction all over the world.
Quality Service Before Shipping
SMAT takes every order seriously. Every step of the process is checked by special person. Every important component is pre-tested before shipment, especially the mixer machine. It also ensures that free spare parts are given to the customer to avoid any possible accidents.
01
Packing and shipping
SMAT has nearly 30 years of export experience. The concrete pump manufactured by us have been exported to different countries. The Concrete Batching Plant will be packed and loaded in our factory, and then be shipped to our clients safe and sound.
02
Technical Service
SMAT provides engineers with on-site installation guidance, commissioning, and training services. SMAT engineers have rich experience in mechanical, electrical, and civil engineering. Proficiency in English and Chinese, the common languages, ensures smooth communication with operators on site.
03
Advantage
SMAT Concrete Pump:
You May Need
SMAT provides various concrete machine for your project.
Service
- China SMAT is in Zhengzhou City. Make sure timely and rapid response to customer needs.
- Engineers team are always available for on-site installation guidance, commissioning, and training services.
- SMAT provides regular visiting to clients sites, thus can promptly correct improper operations.
- Adequate stock of original spare parts to ensure the smooth operation of the project.
- Free customized product appearance color and Logo, provide ODM support.
- VIP groups are created for customers. If you have any questions, feel free to give feedback.
- 7*24 hours online free consulting service, including quotation, 2-3 sets of program design, AutoCAD & 3D drawings, and site planning.
Specification
Concrete Pump with Mixer Specification
| Model | JBS-30R | JBS-40R |
| Max. theo. concrete output(L./H) | 30m³/h | 40m³/h |
| Mixer rated feed capacity | 0.56m³ | 0.56m³ |
| Mixer rated discharge capacity | 0.35m³ | 0.45m³ |
| Max.concrete pumping pressure(H./L.) | 10MPa | 10MPa |
| Distribution valve type | S Valve | S Valve |
| Concrete cylinder diameter*stroke | φ140×1000mm | φ180X1000mm |
| Hopper capacity | 400L | 400L |
| Outlet diameter | φ150mm | φ150mm |
| Diesel engine model | Weichai | Weichai |
| Electrical engineering power | 66KW | 82KW |
| Rotate speed | 1480r/min | 2200r/min |
| Circuit type | Open circuit | Open circuit |
| Pumping system pressure | 26MPa | 32MPa |
| Mixing system pressure | 6-8MPa | 6MPa |
| Capacity of oil tank | 260L | 350L |
| Max. Theoretical Vertical/Horizontal Conveying Distance | 120/300m | 120/500m |
| Max. aggregate diameter | Slick/scree:10/20mm | Slick/scree:40/50mm |
| Inside diameter of delivering pipe | φ100mm | φ125mm |
| Dimensions: length×width×height | 4500x1750x1600mm | 600x2300x3150mm |
| Total weight | 3000kg | 4500kg |
| JBS-30E | JBS-40E | |
| Max. theo. concrete output(L./H) | 30 | 40 |
| Mixer rated feed capacity | 0.56 | 0.56 |
| Mixer rated discharge capacity | 0.35 | 0.45 |
| Max.concrete pumping pressure(H./L.) | 10 | 10 |
| Distribution valve type | S Valve | S Valve |
| Concrete cylinder diameter*stroke | Φ140X1000 | Φ180X1000 |
| Hopper capacity | 400 | 400 |
| Outlet diameter | Φ150 | Φ150 |
| Electrical engineering power | 37 | 45 |
| Rotate speed | 1480 | 1480 |
| Circuit type | Open circuit | Open circuit |
| Pumping system pressure | 26 | 26 |
| Mixing system pressure | 6-8 | 6-8 |
| Capacity of oil tank | 260 | 370 |
| Max. Theoretical Vertical/Horizontal Conveying Distance | 120/300 | 120/500 |
| Max. aggregate diameter | Slick/scree:10/20 | Slick/scree:40/50 |
| Inside diameter of delivering pipe | Φ100 | Φ125 |
| Dimensions: length×width×height | 4500x1750x1600 | 4200x2300x3150 |
| Total weight | 3000 | 4500 |

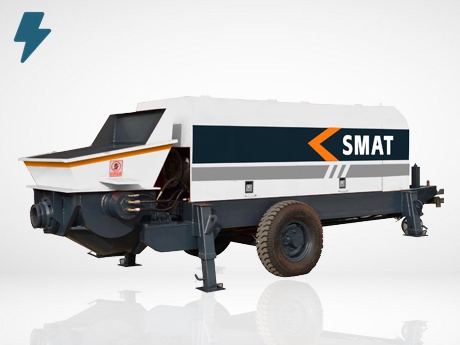

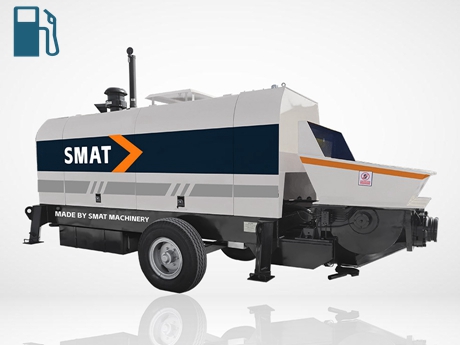

Concrete Trailer Pump Specification

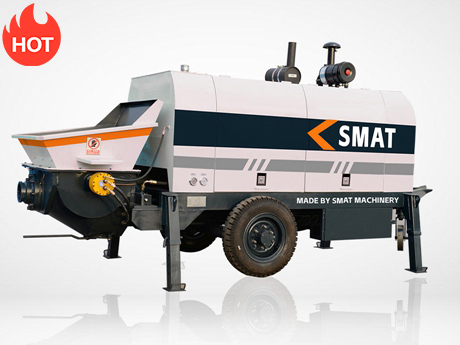

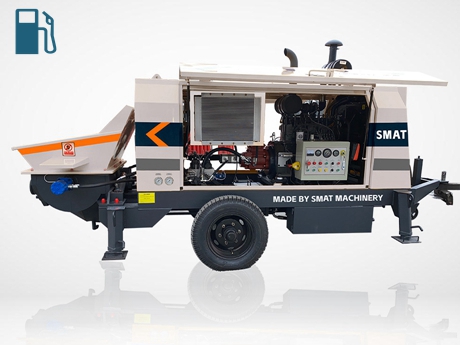

| Items | HBT-40R | HBT-60R | HBT-80R |
| Max. theo. concrete output(L./H) | 40/26m³/h | 67/45m³/h | 84/45m³/h |
| Max.concrete pumping pressure(H./L.) | 10/7.6MPa | 43659MPa | 43785MPa |
| Distribution valve type | S Valve | S Valve | S Valve |
| Concrete cylinder diameter X stroke | Φ180X1200mm | Φ200X1650mm | Φ200X1800mm |
| Hopper capacity x feeding height | 400/1100L/mm | 800/1400L/mm | 800/1400L/mm |
| Outlet diameter | Φ150mm | Φ180mm | Φ180mm |
| Diesel engine model | Weifang Delier 6105ZB | Wechai | Wechai |
| Electrical engineering power | 82KW | 129KW | 176KW |
| Rotate speed | 2100r/min | 2200r/min | 2200r/min |
| Circuit type | open circuit | ||
| Pumping system pressure | 32MPa | 32MPa | 32MPa |
| Mixing system pressure | 43624MPa | 43624MPa | 43624MPa |
| Capacity of oil tank | 370L | 370L | 580L |
| Max. Theoretical Vertical/Horizontal Conveying Distance | 120/500m | 180/800m | 200/800m |
| Max. aggregate diameter | Slick/scree:40/50mm | Slick/scree:40/50mm | Slick/scree:40/50mm |
| Inside diameter of delivering pipe | Φ125mm | Φ125mm | Φ125mm |
| Dimensions: length×width×height | 5000x1850x1700mm | 5800x2000x1750mm | 6300x2100x2350mm |
| Total weight | 4500kg | 6500kg | 6900kg |

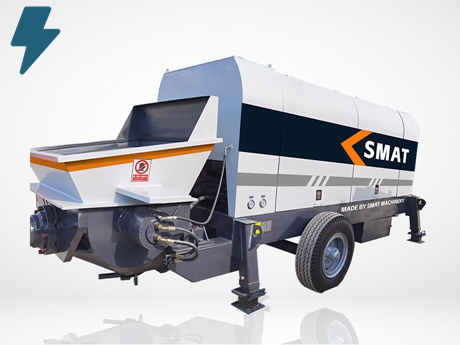

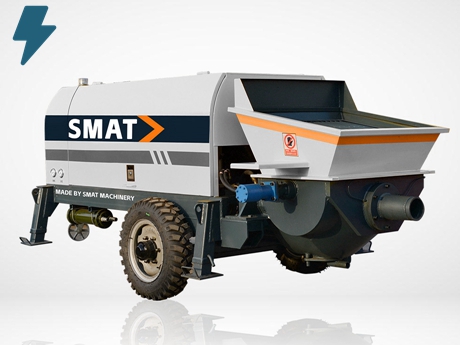

| Items | HBT-40E | HBT-60E | HBT-60E |
| Max. theo. concrete output(L./H) | 40m³/h | 60/36m³/h | 86/45m³/h |
| Max.concrete pumping pressure(H./L.) | 10MPa | 13/7MPa | 16/11MPa |
| Distribution valve type | S Valve | S Valve | S Valve |
| Concrete cylinder diameter X stroke | Φ180X1200mm | Φ200X1650mm | Φ200X1800mm |
| Hopper capacity x feeding height | 400/1100L/mm | 800/1100L/mm | 800/1100L/mm |
| Outlet diameter | Φ100mm | Φ180mm | Φ180mm |
| Electrical engineering power | 45KW | 90KW | 90KW |
| Rotate speed | 1480r/min | 1480r/min | 1480r/min |
| Circuit type | Open circuit | ||
| Pumping system pressure | 28MPa | 28MPa | 32MPa |
| Mixing system pressure | 8MPa | 6-8MPa | 14MPa |
| Capacity of oil tank | 370L | 560L | 580L |
| Max. Theoretical Vertical/Horizontal Conveying Distance | 120/500L | 160/800L | 200/800L |
| Max. aggregate diameter | Slick/scree:40/50mm | Slick/scree:40/50mm | Slick/scree:40/50mm |
| Inside diameter of delivering pipe | Φ125mm | Φ125mm | Φ125mm |
| Dimensions: length×width×height | 4500x1750x1600mm | 4500x1750x1600mm | 6300x2100x2250mm |
| Total weight | 3200kg | 6000kg | 6300kg |
