- Mobile/Portable Type
- DHZS Type
- Mobile Dry Mix Type
Model: YHZS-25
Productivity: 25m³/h
Discharging Volume: 500L
Feeding Volume: 800L
Model: YHZS-35
Productivity: 35m³/h
Discharging Volume: 750L
Feeding Volume: 1200L
Model: YHZS-60
Productivity: 60m³/h
Discharging Volume: 1000L
Feeding Volume: 1600L
Model: YHZS-90
Productivity: 90m³/h
Discharging Volume: 1500L
Feeding Volume: 2400L
Model: DHZS-25
Productivity: 25m³/h
Model: DHZS-35
Productivity: 35m³/h
Model: DHZS-50
Productivity: 50m³/h
Description

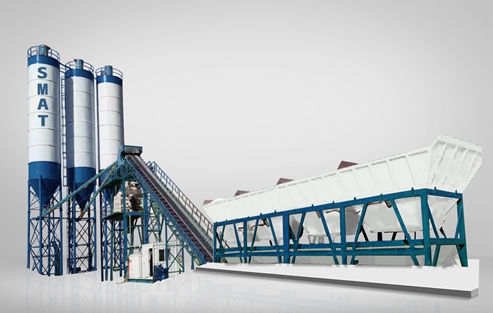

SMAT has been serving a large number of mobile concrete batching plant customers in the world. We have a wide range of mixing plants with customized options for capacity, mixing efficiency, feeding speed, and more depending on your needs. Our customers cover cities like Philippines, Malaysia, UAE, Saudi Arabia, Azerbaijan, Guyana, Georgia, etc. Please feel free to contact us.
Hot Sale
Mobile Concrete Btaching Plant Solution
It meets both the needs of high production and the most convenient mobile at the same time. If you are looking for a mobile batching plant for your construction project, this one will be an excellent choice for you.
- Model: YHZS25-90
- Productivity: 25-90m³/h
Mobile Dry Concrete Batching Plant
In a dry concrete batching plant, ingredients such as aggregate, cement and additives are transported to an aggregate silo or directly into a tanker for batching. Water is added to it to produce concrete.
DHZS Concrete Plant
DHZS series is a concrete mixer machine plus PLD batching machine. It can mix plastic and dry-hard concrete, forward stirring andreversal discharging. lt is combinedto medium & small scale batching plant with batching machine ,applies to constructionsite, road, bridge and hydropower etc., especially for urban residential construction.
- Model: DHZS25-50
- Productivity: 25-50m³/h
JS Concrete Mixer
JS concrete mixer is one of the core parts of the mixing plant, SMAT factory has a lot of production experience. Offer you competitive factory price.
JS Concrete Mixer Specification
JZC/JZM Concrete Mixer
These series concrete mixer can mix plastic and dry-hard concrete, forward stirring andreversal discharging. lt is combinedto medium & small scale batching plant with batching machine ,applies to constructionsite, road, bridge and hydropower etc., especially for urban residential construction.
PLD Concrete Batching Machine
SMAT's PLD range of batch machine has a wide range of models for you to choose from. Individual weighing or centralised weighing, fully automatic operation for customer convenience.
Related Cases
Please check more about SMAT concrete batching plant case in the world:
The Components of SMAT Concrete Batching Plant
SMAT concrete batching plant mainly consists of five main systems: mixer, material weighing system, conveying system, storage system, and control system. If you want to know more about the basic components, SMAT will introduce them to you as follows.
Concrete Mixer
SMAT concrete batching plant introduces advanced mixing technology and is equipped with an efficient mixing system to ensure uniform and stable quality of concrete. It has high production efficiency, strong mixing ability, and strong flexibility.
01
Aggregates Batcher
Equipped with an intelligent management system to realize real-time monitoring and data analysis of the production process. It helps to adjust production parameters in time and improve production efficiency.
02
Control System
Equipped with an automated control system, it can realize fully automatic production operations, improve production efficiency, and reduce labor costs
03
Conveying System
Use an imported lubrication system and shaft drive system. All components have reliable quality and stable performance.
04
Cement Bin
Use wear-resistant materials. The support frame and aggregate bin are designed to be strong and durable for longer service life. The structural design is reasonable and the maintenance is gradual. Reduce downtime and increase production efficiency
05
SMAT was established in 1988, specializing in one-stop service for design, R&D, production, sales, and installation of concrete machinery and mining machinery. From the first machine off the production line to today’s products all over the world, we always believe that providing high-quality products and timely efficient after-sales service is the key to business development.
Currently, SMAT has several production plants in China. The total area is 300,000 square meters with 28 perfect production lines. As a top manufacturer of machinery for the construction industry, SMAT focuses on making innovative technologies, manufacturing better quality products, and providing comprehensive solutions for the projects of our global customer partners. Our products have been exported to more than 80 countries and we have set up service stations in many countries.
What SMAT Would Do After Confirm Oder
SMAT concrete batching plant is a mechanized, automated, high-efficiency, and integrated concrete mixing equipment that is widely used in concrete production projects with large quantities of work and long construction periods. SMAT has successfully exported to more than 80 countries with our technological innovation and R&D strength in the field of concrete machinery, as well as the high performance and versatility of products.
Quality Service Before Shipping
SMAT takes every order seriously. Every step of the process is checked by special person. Every important component is pre-tested before shipment, especially the mixer machine. It also ensures that free spare parts are given to the customer to avoid any possible accidents.
01
Packing and shipping
SMAT has nearly 30 years of export experience. The concrete batching plants manufactured by us have been exported to different countries. The Concrete Batching Plant will be packed and loaded in our factory, and then be shipped to our clients safe and sound.
02
Technical Service
SMAT provides engineers with on-site installation guidance, commissioning, and training services. And SMAT engineers have rich experience in mechanical, electrical, and civil engineering. Proficiency in English and Chinese, the common languages, ensures smooth communication with operators on site.
03
Advantage
SMAT Concrete Batching Plant:
Service
- China SMAT is in Zhengzhou City. Make sure timely and rapid response to customer needs.
- Engineers team are always available for on-site installation guidance, commissioning, and training services.
- SMAT provides regular visiting to clients sites, thus can promptly correct improper operations.
- Adequate stock of original spare parts to ensure the smooth operation of the project.
- Free customized product appearance color and Logo, provide ODM support.
- VIP groups are created for customers. If you have any questions, feel free to give feedback.
- 7*24 hours online free consulting service, including quotation, 2-3 sets of program design, AutoCAD & 3D drawings, and site planning.
Specification
Mobile Concrete Batching Plant Specification:
| Parameters/Model | YHZS-25 | YHZS-35 | YHZS-60 | YHZS-90 |
| Theoretical Productivity (m³/h) | 25 | 35 | 60 | 90 |
| Mixer Discharging Volume (L) | 500 | 750 | 1000 | 1500 |
| Mixer Feeding Volume (L) | 800 | 1200 | 1600 | 2400 |
| Mixer Motor Power (kW) | 18.5 | 30 | 18.5×2 | 30×2 |
| Discharging Height (m) | 3.8 | 4.1 | 4.1 | 4.1 |
| Aggregate Material Quantity (m3) | 3×3 | 5×3 | 8×3 | 12×3 |
| Cycle Period (s) | 60 | 60 | 60 | 60 |
| Max. Aggregate Size (mm) | 80/60 | 80/60 | 80/60 | 80/60 |
| Cement Silo (t) (optional) | 50×1 | 50×1 | 100×1 | 100×1 |
| Aggregate Weighing Accuracy | ±2% | ±2% | ±2% | ±2% |
| Powder Material Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
| Water Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
| Additive Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
| Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈140 |
| Traction Type | Semi-trailer | |||
| Control Mode | Full Automatic Computer PLC Control | |||
| Power Supply | 220V/415V/440V/380V/, 50HZ/60HZ, 3Phase | |||
Foundation-Free Batching Plant Specification
| Model | FHZS25 | FHZS-35 | FHZS-50 | FHZS-60 | FHZS-75 | FHZS-90 | FHZS-120 | FHZS-180 |
| Theoretical Productivity (m³/h) | 25 | 35 | 50 | 60 | 75 | 90 | 120 | 180 |
| Mixer Model (Mixer Output L) | JS500 | JS750 | JS1000 | JS1000 | JS1500 | JS1500 | MAO3000/2000(SICOMA) | MAO4500/3000(SICOMA) |
| Mixer Power (kW) | 18.5 | 30 | 2×18.5 | 2×18.5 | 2×30 | 2×30 | 2×37 | 2×55 |
| Mixing Cycle Period (s) | 72 | 72 | 72 | 60 | 72 | 60 | 60 | 60 |
| Rated Input Volume (Model of Batching Machine L) | 800 | 1200 | 1600 | 1600 | 2400 | 2400 | 3000 | 4500 |
| Standard Aggregate Bin Capacity (m³) | 3×3 | 3×5 | 3×8 | 4×7 | 3×12 | 4×15 | 4×15 | 4×20 |
| Category of Aggregate | 2/3 | 2/3/4 | 3/4 | 4/5 | 4/5 | 4/5 | 4/5/6 | 4/5/6 |
| Overall Weight (ton) | ≈15 | ≈18 | ≈23 | ≈40 | ≈30 | ≈68 | ≈93 | ≈101 |
| Installation Power (kW) | ≈65 | ≈75 | ≈100 | ≈110 | ≈140 | ≈160 | ≈220 | ≈290 |
